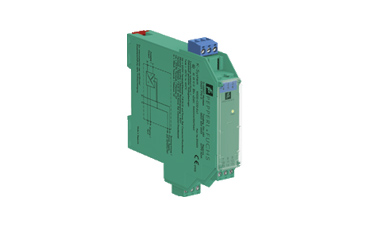

KFD2-CD-Ex1.32 倍加福電流/電壓驅動器現貨供應

???????倍加福電流/電壓驅動器KFD2-CD-Ex1.32單通道隔離柵，電流和電壓輸入，電流或電壓輸出，弗熙堡從事自動化產品經銷多年，一切從客戶實際需求出發，備有大量現貨，竭誠為您服務，您值得選擇！021-51601058

好評系數：

立即詢價

倍加福電流/電壓驅動器KFD2-CD-Ex1.32現貨供應

產品特性

? 1通道隔離柵

? 24 V DC電源（電源導軌）

? 電流和電壓輸入

? 電流或電壓輸出

? 出廠配置的輸入/輸出

? 精度0.1％

? 符合SIL 2標準 符合IEC 61508

General specifications
Signal type		Analog output
Functional safety related parameters
Safety Integrity Level (SIL)		SIL 2
Supply
Connection		Power Rail or terminals 7+, 8-
Rated voltage		20 ... 35 V DC
Ripple		within the supply tolerance
Rated current		current output: ≤ 50 mA ; voltage output: ≤ 20 mA
Power dissipation		1.2 W
Input
Connection side		control side
Connection		terminals 9+, 10-, 11+
Voltage drop		optional current input: approx. 4 V at 20 mA
Input current		≤ 100 µA up to 50 °C (122 °F) at 10 V
Limit		optional current input: Input current: approx. ≤40 mA optional voltage input: input voltage: 12 V DC
Transmission range		optional current input: 0 ... 20 mA/optional voltage input: 0 ... 10 V
Output
Connection side		field side
Connection		terminals 1+, 2-
Voltage		optional current output: 17 V at 20 mA/optional voltage output: 0 ... 10 V
Current		optional current output: 0 ... 20 mA/optional voltage output: ≤ 20 mA
Load		optional current output: max. 850 Ω optional voltage output: output resistance max. 3 Ω
Transfer characteristics
Accuracy		0.1 %
Deviation
	After calibration	≤ ± 0.1 % incl. non-linearity and hysteresis at 20 °C (68 °F)
	Influence of ambient temperature	≤ ± 0.01 %/K
Rise time		< 10 ms
Galvanic isolation
Input/power supply		functional insulation, rated insulation voltage 50 V AC
Indicators/settings
Display elements		LED
Labeling		space for labeling at the front
Directive conformity
Electromagnetic compatibility
	Directive 2014/30/EU	EN 61326-1:2013 (industrial locations)
Conformity
Degree of protection		IEC 60529:2001
Protection against electrical shock		UL 61010-1:2004
Ambient conditions
Ambient temperature		-20 ... 60 °C (-4 ... 140 °F)
Mechanical specifications
Degree of protection		IP20
Connection		screw terminals
Mass		approx. 100 g
Dimensions		20 x 107 x 115 mm (0.8 x 4.2 x 4.5 inch) , housing type B1
Mounting		on 35 mm DIN mounting rail acc. to EN 60715:2001
Data for application in connection with hazardous areas
EU-type examination certificate		BAS 02 ATEX 7203 X
	Marking	II (1)G [Ex ia Ga] IIC , II (1)D [Ex ia Da] IIIC , I (M1) [Ex ia Ma] I
	Voltage	25.2 V DC
	Current	optional current output: 93 mA optional voltage output: 95 mA
	Power	optional current output: 0.586 W optional voltage output: 0.59 W
Supply
	Maximum safe voltage	250 V (Attention! The rated voltage can be lower.)
Input
	Maximum safe voltage	250 V (Attention! The rated voltage can be lower.)
Certificate		TÜV 99 ATEX 1499 X
	Marking	II 3G Ex nA II T4
Galvanic isolation
	Input/Output	safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V
	Output/power supply	safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V
Directive conformity
	Directive 2014/34/EU	EN 60079-0:2012+A11:2013 , EN 60079-11:2012 , EN 60079-15:2010
International approvals
FM approval
	Control drawing	116-0129
UL approval
	Control drawing	116-0173 (cULus)
IECEx approval		IECEx BAS 05.0041
	Approved for	[Ex ia Ga] IIC, [Ex ia Da] IIIC, [Ex ia Ma] I
General information
Supplementary information		Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable.
