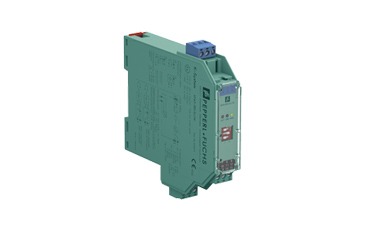

KFA5-SR2-EX1.W 倍加福開關放大器現貨供應

???????倍加福開關放大器KFA5-SR2-EX1.W，單通道隔離柵，115 V AC電源，干接點或NAMUR輸入，弗熙堡從事自動化產品經銷多年，一切從客戶實際需求出發，備有大量現貨，竭誠為您服務，您值得選擇！021-51601058

好評系數：

立即詢價

倍加福開關放大器KFA5-SR2-EX1.W現貨供應

產品特性

? 1通道隔離柵

? 115 V AC電源

? 干接點或NAMUR輸入

? 繼電器接點輸出

? 線路故障檢測（LFD）

? 可逆操作模式

? 符合SIL 2標準 符合IEC 61508 / IEC 61511

General specifications
Signal type		Digital Input
Functional safety related parameters
Safety Integrity Level (SIL)		SIL 2
Supply
Connection		terminals 14, 15
Rated voltage		103.5 ... 126 V AC , 45 ... 65 Hz
Power consumption		1 W
Input
Connection side		field side
Connection		terminals 1+, 2+, 3-
Rated values		acc. to EN 60947-5-6 (NAMUR)
Open circuit voltage/short-circuit current		approx. 8 V DC / approx. 8 mA
Switching point/switching hysteresis		1.2 ... 2.1 mA / approx. 0.2 mA
Line fault detection		breakage I ≤ 0.1 mA , short-circuit I > 6 mA
Pulse/Pause ratio		min. 20 ms / min. 20 ms
Output
Connection side		control side
Connection		terminals 7, 8, 9
Output		signal, relay
Contact loading		253 V AC/2 A/cos φ > 0.7; 126.5 V AC/4 A/cos φ > 0.7; 40 V DC/2 A resistive load
Energized/De-energized delay		approx. 20 ms / approx. 20 ms
Mechanical life		10⁷ switching cycles
Transfer characteristics
Switching frequency		< 10 Hz
Galvanic isolation
Input/Output		reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 V_eff
Input/power supply		reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 V_eff
Output/power supply		reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 V_eff
Indicators/settings
Display elements		LEDs
Control elements		DIP-switch
Configuration		via DIP switches
Labeling		space for labeling at the front
Directive conformity
Electromagnetic compatibility
	Directive 2014/30/EU	EN 61326-1:2013 (industrial locations)
Low voltage
	Directive 2014/35/EU	EN 61010-1:2010
Conformity
Electromagnetic compatibility		NE 21:2006
Degree of protection		IEC 60529:2001
Input		EN 60947-5-6:2000
Ambient conditions
Ambient temperature		-20 ... 60 °C (-4 ... 140 °F)
Mechanical specifications
Degree of protection		IP20
Connection		screw terminals
Mass		approx. 150 g
Dimensions		20 x 119 x 115 mm (0.8 x 4.7 x 4.5 inch) , housing type B2
Mounting		on 35 mm DIN mounting rail acc. to EN 60715:2001
Data for application in connection with hazardous areas
EU-Type Examination Certificate		PTB 00 ATEX 2081
	Marking	II (1)G [Ex ia Ga] IIC II (1)D [Ex ia Da] IIIC I (M1) [Ex ia Ma] I
	Input	Ex ia
	Voltage	10.6 V
	Current	19.1 mA
	Power	51 mW (linear characteristic)
Supply
	Maximum safe voltage	126.5 V AC (Attention! U_m is no rated voltage.)
Output
	Contact loading	253 V AC/2 A/cos φ > 0.7; 126.5 V AC/4 A/cos φ > 0.7; 40 V DC/2 A resistive load
	Maximum safe voltage	253 V AC (Attention! The rated voltage can be lower.)
Galvanic isolation
	Input/Output	safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V
	Input/power supply	safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V
Directive conformity
	Directive 2014/34/EU	EN 60079-0:2012+A11:2013 , EN 60079-11:2012
International approvals
FM approval
	Control drawing	116-0035
UL approval
	Control drawing	116-0145
CSA approval
	Control drawing	116-0047
IECEx approval		IECEx PTB 11.0031
	Approved for	[Ex ia Ga] IIC, [Ex ia Da] IIIC, [Ex ia Ma] I
General information
Supplementary information		Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable.

弗熙堡自動化自成立以來“以市場為導向，客戶需求為依據，信譽和質量為生命”，的經營理念，謁誠為廣大客戶提供工業自動化產品；由于產品眾多，限于篇幅，無法一一展示，如有未展示自動化產品需要，盡請來電咨詢，電話： 021-51601058 手機：189-6426-6865
