KFD2-CD-1.32 倍加福電流驅動器現貨供應

KFD2-CD-1.32 倍加福電流驅動器現貨供應

???????倍加福電流驅動器KFD2-CD-1.32，單通道信號調理器，24 V DC電源（電源導軌），弗熙堡從事自動化產品經銷多年，一切從客戶實際需求出發，備有大量現貨，竭誠為您服務，您值得選擇！021-51601058

好評系數：

立即詢價 KFD2-CD-1.32 倍加福電流驅動器現貨供應

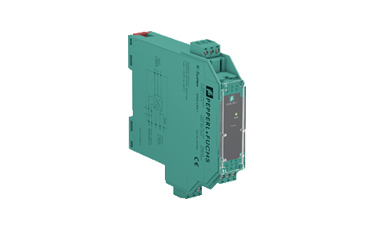

倍加福電流驅動器KFD2-CD-1.32現貨供應
KFD2-CD-1.32
產品特點
       ? 1通道信號調理器
       ? 24 V DC電源（電源導軌）
       ? 電流輸入0 mA ... 20 mA
       ? 電流輸出0 mA ... 20 mA
       ? 精度0.1％
       ? 符合SIL 2標準 符合IEC 61508

General specifications
Signal type Analog output
Functional safety related parameters
Safety Integrity Level (SIL) SIL 2
Supply
Connection Power Rail or terminals 7+, 8-
Rated voltage 20 ... 35 V DC
Ripple within the supply tolerance
Rated current ≤ 50 mA
Power dissipation 1.2 W
Input
Connection side control side
Connection terminals 9+, 10-, 11+
Voltage drop approx. 4 V at 20 mA
Limit Input current: approx. ≤40 mA ; input voltage: ≤ 35 V
Transmission range 0 ... 20 mA
Voltage ≤ 4 V at 20 mA
Output
Connection side field side
Connection terminals 1+, 2-
Current 0 ... 20 mA
Load max. 850 Ω
Voltage 17 V at 20 mA
Transfer characteristics
Accuracy 0.1 %
Deviation
  After calibration ≤ ± 0.1 % incl. non-linearity and hysteresis at 20 °C (68 °F)
  Influence of ambient temperature ≤ ± 0.01 %
Rise time < 10 ms
Galvanic isolation
Input/Output safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V
Input/power supply functional insulation, rated insulation voltage 50 V AC
Output/power supply safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V
Indicators/settings
Display elements LED
Labeling space for labeling at the front
Directive conformity
Electromagnetic compatibility
  Directive 2014/30/EU EN 61326-1:2013 (industrial locations)
Conformity
Insulation coordination EN 50178
Galvanic isolation EN 50178
Degree of protection IEC 60529
Ambient conditions
Ambient temperature -20 ... 60 °C (-4 ... 140 °F)
Mechanical specifications
Degree of protection IP20
Connection screw terminals
Mass approx. 100 g
Dimensions 20 x 107 x 115 mm (0.8 x 4.2 x 4.5 inch) , housing type B1
Mounting on 35 mm DIN mounting rail acc. to EN 60715:2001
Data for application in connection with hazardous areas
Certificate TÜV 99 ATEX 1499 X
  Marking Ex-Hexagon II 3G Ex nA II T4
Directive conformity
  Directive 2014/34/EU EN 60079-0:2012+A11:2013 , EN 60079-15:2010
General information
Supplementary information Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable.
Accessories
Optional accessories - power feed module KFD2-EB2(.R4A.B)(.SP)
- universal power rail UPR-03(-M)(-S)
- profile rail K-DUCT-GY(-UPR-03)
