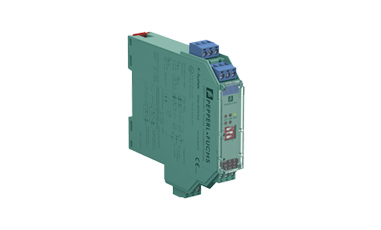

KFA6-SOT2-Ex2 倍加福開關放大器現貨供應

???????倍加福開關放大器KFA6-SOT2-Ex2，雙通道隔離柵，230 V AC電源,干接點或NAMUR輸入，弗熙堡從事自動化產品經銷多年，一切從客戶實際需求出發，備有大量現貨，竭誠為您服務，您值得選擇！021-51601058

好評系數：

立即詢價

倍加福開關放大器KFA6-SOT2-Ex2現貨供應

產品特性

? 2通道隔離柵

? 230 V AC電源

? 干接點或NAMUR輸入

? 無源晶體管輸出，無級性

? 線路故障檢測（LFD）

? 可逆操作模式

? 符合SIL 2標準 符合IEC 61508

General specifications
Signal type		Digital Input
Functional safety related parameters
Safety Integrity Level (SIL)		SIL 2
Supply
Connection		terminals 14, 15
Rated voltage		207 ... 253 V AC, 45 ... 65 Hz
Power dissipation		1 W
Power consumption		max. 1.5 W
Input
Connection side		field side
Connection		terminals 1+, 2+, 3-; 4+, 5+, 6-
Rated values		acc. to EN 60947-5-6 (NAMUR), see system description for electrical data
Open circuit voltage/short-circuit current		approx. 8 V DC / approx. 8 mA
Switching point/switching hysteresis		1.2 ... 2.1 mA / approx. 0.2 mA
Line fault detection		breakage I ≤ 0.1 mA , short-circuit I > 6 mA
Output
Connection side		control side
Connection		output I: terminals 7, 8 ; output II: terminals 8, 9
Switching voltage		max. 40 V
Switching current		max. 100 mA , short-circuit protected
Signal level		1-signal: switching voltage - 2.5 V max. at 10 mA switching current or 3 V max. at 100 mA switching current 0-signal: switched off (off-state current ≤ 10 µA)
Output I, II		signal ; electronic output, passive
Transfer characteristics
Switching frequency		≤ 5 kHz
Galvanic isolation
Input/Output		reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 V_eff
Input/power supply		reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 V_eff
Output/power supply		reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 V_eff
Output/Output		not available
Indicators/settings
Display elements		LEDs
Control elements		DIP-switch
Configuration		via DIP switches
Labeling		space for labeling at the front
Directive conformity
Electromagnetic compatibility
	Directive 2014/30/EU	EN 61326-1:2013 (industrial locations)
Low voltage
	Directive 2014/35/EU	EN 61010-1:2010
Conformity
Electromagnetic compatibility		NE 21:2012
Degree of protection		IEC 60529
Ambient conditions
Ambient temperature		-20 ... 60 °C (-4 ... 140 °F)
Mechanical specifications
Degree of protection		IP20
Connection		screw terminals
Mass		approx. 150 g
Dimensions		20 x 119 x 115 mm (0.8 x 4.7 x 4.5 inch) , housing type B2
Mounting		on 35 mm DIN mounting rail acc. to EN 60715:2001
Data for application in connection with hazardous areas
EU-Type Examination Certificate		PTB 98 ATEX 2164
	Marking	II (1) G [Ex ia] IIC II (1) D [Ex ia] IIIC
	Input	Ex ia IIC, Ex ia IIIC
	Voltage	10.5 V
	Current	13 mA
	Power	34 mW (linear characteristic)
Supply
	Maximum safe voltage	253 V AC (Attention! U_m is no rated voltage.)
Output
	Maximum safe voltage	253 V AC (Attention! The rated voltage can be lower.)
Galvanic isolation
	Input/input	not available
	Input/Output	safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V
	Input/power supply	safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V
Directive conformity
	Directive 2014/34/EU	EN 60079-0:2012+A11:2013 , EN 60079-11:2012
International approvals
UL approval
	Control drawing	116-0145
CSA approval
	Control drawing	116-0047
General information
Supplementary information		Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable.
