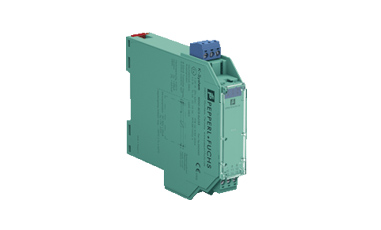

KFD0-SCS-Ex1.55 SMART電流驅動器/中繼器現貨供應

KFD0-SCS-Ex1.55 SMART電流驅動器/中繼器現貨供應

???????倍加福SMART電流驅動器/中繼器KFD0-SCS-Ex1.55，單通道隔離柵，HART I / P或變送器電源，弗熙堡從事自動化產品經銷多年，一切從客戶實際需求出發，備有大量現貨，竭誠為您服務，您值得選擇！021-51601058

好評系數：

立即詢價 KFD0-SCS-Ex1.55 SMART電流驅動器/中繼器現貨供應
倍加福SMART電流驅動器/中繼器KFD0-SCS-Ex1.55現貨供應
KFD0-SCS-Ex1.55
產品特性
       ? 1通道隔離柵
       ? 24 V DC電源（回路供電）
       ? 電流輸入/輸出4 mA ... 20 mA
       ? HART I / P或變送器電源
       ? 低壓降
       ? 線路故障檢測（LFD）
       ? 符合SIL 2標準 符合IEC 61508

General specifications
Signal type Analog input/analog output
Functional safety related parameters
Safety Integrity Level (SIL) SIL 2
Supply
Rated voltage loop powered
Power dissipation 0.2 W
Control circuit
Connection terminals 8-, 9+
Voltage max. 30 V DC
Current 4 ... 20 mA (quiescent current < 0.5 mA)
Power dissipation 150 mW at 20 mA and Uin < 24 V
Field circuit
Connection terminals 1+, 2 / 3-
Voltage ≥ 16 V for supply voltage > 21 V
Current 4 ... 20 mA (linear transmission 1 ... 22 mA)
Load ≤ 800 Ω (at 20 mA)
Transfer characteristics
Voltage drop see note
Influence of ambient temperature < 0.5 µA/K
Damping approx. 3 dB
Rise time ≤ 20 µs at 0 Ω, ≤ 600 µs with 800 Ω load
Indicators/settings
Labeling space for labeling at the front
Directive conformity
Electromagnetic compatibility
  Directive 2014/30/EU EN 61326-1:2013 (industrial locations)
Conformity
Electromagnetic compatibility NE 21:2007
Degree of protection IEC 60529:2001
Ambient conditions
Ambient temperature -20 ... 60 °C (-4 ... 140 °F)
Mechanical specifications
Degree of protection IP20
Connection screw terminals
Mass approx. 120 g
Dimensions 20 x 124 x 115 mm (0.8 x 4.9 x 4.5 inch) , housing type B2
Mounting on 35 mm DIN mounting rail acc. to EN 60715:2001
Data for application in connection with hazardous areas
EU-Type Examination Certificate PTB 02 ATEX 2064
  Marking Ex-Hexagon II (2)G [EEx ib] IIC
Certificate PF 11 CERT 0902 X
  Marking Ex-Hexagon II 3G Ex nA IIC T4 Gc
Directive conformity
  Directive 2014/34/EU EN 60079-0:2012+A11:2013 , EN 60079-11:2012 , EN 60079-15:2010
International approvals
FM approval device with FM approval on request
