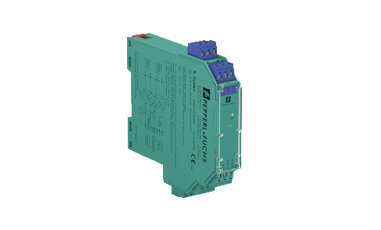

KFD2-STC4-EX2 SMART變送器電源現貨供應

???????倍加福SMART變送器電源KFD2-STC4-EX2，雙通道隔離柵，輸入2線制SMART變送器，弗熙堡從事自動化產品經銷多年，一切從客戶實際需求出發，備有大量現貨，竭誠為您服務，您值得選擇！021-51601058

好評系數：

立即詢價

倍加福SMART變送器電源KFD2-STC4-EX2現貨供應

產品特性

? 2通道隔離柵

? 24 V DC電源（電源導軌）

? 輸入2線制SMART變送器

? 輸出0/4 mA ... 20 mA

? 帶有測試點的端子

? 符合SIL 2標準 符合IEC 61508

產品介紹
Input 0/4 mA ... 20 mA Output 0/4 mA ... 20 mA

General specifications
Signal type		Analog input
Functional safety related parameters
Safety Integrity Level (SIL)		SIL 2
Supply
Connection		Power Rail or terminals 14+, 15-
Rated voltage		20 ... 35 V DC
Ripple		within the supply tolerance
Power dissipation		1.8 W
Power consumption		max. 2.7 W
Input
Connection side		field side
Connection		terminals 1+, 3-; 4+, 6-
Input signal		0/4 ... 20 mA
Available voltage		≥ 16 V at 20 mA, terminals 1+, 3
Output
Connection side		control side
Connection		terminals 7-, 8+; 10-, 11+
Load		0 ... 550 Ω at 20 mA
Output signal		0/4 ... 20 mA (overload > 25 mA)
Ripple		max. 50 µA _rms
Transfer characteristics
Deviation		at 20 °C (68 °F), 0/4 ... 20 mA ≤ 10 µA incl. calibration, linearity, hysteresis, loads and fluctuations of supply voltage
	Influence of ambient temperature	0.25 µA/K
Frequency range		field side into the control side: band width with 1 V_pp signal 0 ... 7.5 kHz (-3 dB) safe area to hazardous area: band width with 1 V_SS signal 0.3 ... 7.5 kHz (-3 dB)
Settling time		200 µs
Rise time/fall time		20 µs
Galvanic isolation
Output/power supply		functional insulation, rated insulation voltage 50 V AC
Output/Output		functional insulation, rated insulation voltage 50 V AC
Indicators/settings
Display elements		LED
Labeling		space for labeling at the front
Directive conformity
Electromagnetic compatibility
	Directive 2014/30/EU	EN 61326-1:2013 (industrial locations)
Conformity
Electromagnetic compatibility		NE 21:2011
Degree of protection		IEC 60529:2001
Protection against electrical shock		UL 61010-1:2012
Ambient conditions
Ambient temperature		-20 ... 60 °C (-4 ... 140 °F)
Mechanical specifications
Degree of protection		IP20
Connection		screw terminals
Mass		approx. 150 g
Dimensions		20 x 124 x 115 mm (0.8 x 4.9 x 4.5 inch) , housing type B2
Mounting		on 35 mm DIN mounting rail acc. to EN 60715:2001
Data for application in connection with hazardous areas
EU-type examination certificate		BAS 99 ATEX 7025 X
	Marking	II (1)G [Ex ia Ga] IIC , II (1)D [Ex ia Da] IIIC , I (M1) [Ex ia Ma] I
	Input	[Ex ia Ga] IIC, [Ex ia Da] IIIC, [Ex ia Ma] I
	Voltage	25.2 V
	Current	93 mA
	Power	0.586 W
Supply
	Maximum safe voltage	250 V (Attention! The rated voltage can be lower.)
Certificate		TÜV 99 ATEX 1499 X
	Marking	II 3G Ex nA II T4 [device in zone 2]
Galvanic isolation
	Input/Output	safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V
	Input/power supply	safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V
Directive conformity
	Directive 2014/34/EU	EN 60079-0:2012+A11:2013 , EN 60079-11:2012 , EN 60079-15:2010
International approvals
UL approval
	Control drawing	116-0428 (cULus)
IECEx approval		IECEx BAS 04.0015X IECEx CML 15.0055X
	Approved for	[Ex ia Ga] IIC, [Ex ia Da] IIIC, [Ex ia Ma] I Ex nA IIC T4 Gc
General information
Supplementary information		Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable.

弗熙堡自動化自成立以來“以市場為導向，客戶需求為依據，信譽和質量為生命”，的經營理念，謁誠為廣大客戶提供工業自動化產品；由于產品眾多，限于篇幅，無法一一展示，如有未展示自動化產品需要，盡請來電咨詢，電話： 021-51601058 手機：189-6426-6865
