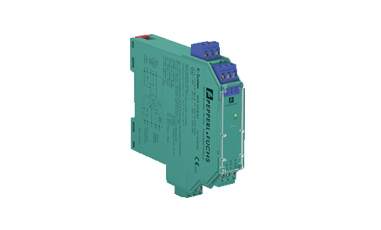

KFD2-STC4-Ex1-Y1 SMART變送器電源 輸出電流吸收器現貨

KFD2-STC4-Ex1-Y1 SMART變送器電源 輸出電流吸收器現貨

???????倍加福SMART變送器電源 輸出電流吸收器KFD2-STC4-Ex1-Y1，雙通道隔離柵，弗熙堡從事自動化產品經銷多年，一切從客戶實際需求出發，備有大量現貨，竭誠為您服務，您值得選擇！021-51601058

好評系數：

立即詢價 KFD2-STC4-Ex1-Y1 SMART變送器電源 輸出電流吸收器現貨
SMART變送器電源 輸出電流吸收器現貨供應KFD2-STC4-Ex1-Y1現貨供應
KFD2-STC4-Ex1-Y1
產品特性
       ? 2通道隔離柵
       ? 24 V DC電源（電源導軌）
       ? 輸入2線制SMART變送器
       ? 輸出0/4 mA ... 20 mA
       ? 帶有測試點的端子
       ? 符合SIL 2標準 符合IEC 61508

產品介紹
Input 0/4 mA ... 20 mA
Output 0/4 mA ... 20 mA (current sink)
General specifications
Signal type Analog input
Functional safety related parameters
Safety Integrity Level (SIL) SIL 2
Supply
Connection Power Rail or terminals 14+, 15-
Rated voltage 20 ... 35 V DC
Ripple within the supply tolerance
Power dissipation 1.4 W
Power consumption 1.8 W
Input
Connection side field side
Connection terminals 1+, 2-, 3 or 5-, 6+
Input signal 0/4 ... 20 mA
Voltage drop ≤ 2.4 V at 20 mA (terminals 5, 6)
Input resistance ≤ 64 Ω terminals 2-, 3 ; ≤ 500 Ω terminals 1+, 3 (250 Ω load)
Available voltage ≥ 16 V at 20 mA terminals 1+, 3
Output
Connection side control side
Connection terminals 7+, 8-
Output signal 0/4 ... 20 mA (overload > 25 mA)
Ripple max. 50 µA rms
External supply (loop) 11 ... 30 V DC
Transfer characteristics
Deviation at 20 °C (68 °F), 0/4 ... 20 mA
≤ 10 µA incl. calibration, linearity, hysteresis, loads and fluctuations of supply voltage
  Influence of ambient temperature 0.25 µA/K
Frequency range field side into the control side: bandwidth with 0.5 Vpp signal 0 ... 7.5 kHz (-3 dB)
control side into the field side: bandwidth with 0.5 Vpp signal 0.3 ... 7.5 kHz (-3 dB)
Settling time 200 µs
Rise time/fall time 20 µs
Galvanic isolation
Output/power supply functional insulation, rated insulation voltage 50 V AC
Indicators/settings
Display elements LED
Labeling space for labeling at the front
Directive conformity
Electromagnetic compatibility
  Directive 2014/30/EU EN 61326-1:2013 (industrial locations)
Conformity
Electromagnetic compatibility NE 21:2011
Degree of protection IEC 60529:2001
Protection against electrical shock UL 61010-1:2012
Ambient conditions
Ambient temperature -20 ... 60 °C (-4 ... 140 °F)
Mechanical specifications
Degree of protection IP20
Connection screw terminals
Mass approx. 200 g
Dimensions 20 x 124 x 115 mm (0.8 x 4.9 x 4.5 inch) , housing type B2
Mounting on 35 mm DIN mounting rail acc. to EN 60715:2001
Data for application in connection with hazardous areas
EU-type examination certificate BAS 99 ATEX 7060 X
  Marking Ex-Hexagon II (1)G [Ex ia Ga] IIC , Ex-Hexagon II (1)D [Ex ia Da] IIIC , Ex-Hexagon I (M1) [Ex ia Ma] I
  Input [Ex ia Ga] IIC, [Ex ia Da] IIIC, [Ex ia Ma] I
Supply
  Maximum safe voltage 250 V (Attention! The rated voltage can be lower.)
Equipment terminals 1+, 3-
  Voltage Uo 25.4 V
  Current Io 86.8 mA
  Power Po 551 mW
  Internal capacitance Ci 12 nF
  Internal inductance Li 0 mH
Equipment terminals 2-, 3
  Current Io/Current Ii 74 mA / 115 mA
  Current Ii 115 mA
  Voltage Uo 3.5 V
  Current Io 74 mA
  Power Po 64 mW
Equipment terminals 1+, 2 / 3-
  Voltage Ui 30 V
  Current Ii 115 mA
  Voltage Uo 25.4 V
  Current Io 115 mA
  Power Po 584 mW
Equipment terminals 5-, 6+
  Voltage Ui 30 V
  Current Ii 115 mA
  Voltage Uo 8.7 V
  Current Io 0 mA
Certificate TÜV 99 ATEX 1499 X
  Marking Ex-Hexagon II 3G Ex nA II T4 [device in zone 2]
Galvanic isolation
  Input/Output safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V
  Input/power supply safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V
Directive conformity
  Directive 2014/34/EU EN 60079-0:2012+A11:2013 , EN 60079-11:2012 , EN 60079-15:2010
International approvals
UL approval
  Control drawing 116-0428 (cULus)
IECEx approval IECEx BAS 04.0016X
IECEx CML 15.0055X
  Approved for [Ex ia Ga] IIC, [Ex ia Da] IIIC, [Ex ia Ma] I
Ex nA IIC T4 Gc
General information
Supplementary information Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable.
