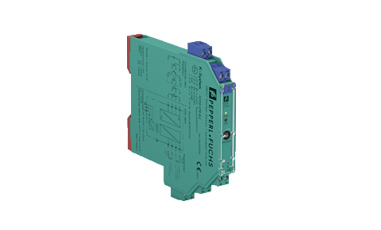

KCD2-UT2-Ex1 通用溫度轉換器現貨供應

???????倍加福通用溫度轉換器KCD2-UT2-Ex1，單通道隔離柵，24 V DC電源，弗熙堡從事自動化產品經銷多年，一切從客戶實際需求出發，備有大量現貨，竭誠為您服務，您值得選擇！021-51601058

好評系數：

立即詢價

倍加福通用溫度轉換器KCD2-UT2-Ex1現貨供應

產品特點

? 1通道隔離柵

? 24 V DC電源（電源導軌）

? 熱電偶，RTD，電位計或電壓輸入

? 電流輸出0/4 mA ... 20 mA

? 接收器或源模式

? 可通過PACTware配置

? 線路故障（LFD）和傳感器斷線檢測

? 符合SIL 2標準 符合IEC 61508 / IEC 61511

產品介紹
Current output 0/4 mA ... 20 mA

General specifications
Signal type		Analog input
Functional safety related parameters
Safety Integrity Level (SIL)		SIL 2
Supply
Connection		terminals 9+, 10- or power feed module/Power Rail
Rated voltage		19 ... 30 V DC
Ripple		within the supply tolerance
Power dissipation/power consumption		≤ 0.98 W / 0.98 W
Interface
Programming interface		programming socket
Input
Connection side		field side
Connection		terminals 1, 2, 3, 4
RTD		type Pt10, Pt50, Pt100, Pt500, Pt1000 (EN 60751: 1995) type Pt10GOST, Pt50GOST, Pt100GOST, Pt500GOST, Pt1000GOST (6651-94) type Cu10, Cu50, Cu100 (P50353-92) type Ni100 (DIN 43760)
	Measuring current	approx. 200 µA with RTD
	Types of measuring	2-, 3-, 4-wire connection
	Lead resistance	max. 50 Ω per line
	Measurement loop monitoring	sensor breakage, sensor short-circuit
Thermocouples		type B, E, J, K, N, R, S, T (IEC 584-1: 1995) type L (DIN 43710: 1985) type TXK, TXKH, TXA (P8.585-2001)
	Cold junction compensation	external and internal
	Measurement loop monitoring	sensor breakage
Potentiometer		0 ... 20 kΩ (2-wire connection), 0.8 ... 20 kΩ (3-wire connection)
Voltage		selectable within the range -100 ... 100 mV
Input resistance		≥ 1 MΩ (-100 ... 100 mV)
Output
Connection side		control side
Connection		terminal 5: source (-), terminal 6: source (+), terminal 7: sink(-), terminal 8: sink (+)
Output		Analog current output
	Current range	0 ... 20 mA or 4 ... 20 mA
	Fault signal	downscale 0 or 2 mA, upscale 21.5 mA (acc. NAMUR NE43)
	Source	load 0 ... 550 Ω open-circuit voltage ≤ 18 V
	Sink	Voltage across terminals 5 ... 30 V. If the current is supplied from a source > 16.5 V, series resistance of ≥ (V - 16.5)/0.0215 Ω is needed, where V is the source voltage. The maximum value of the resistance is (V - 5)/0.0215 Ω.
Transfer characteristics
Deviation
	After calibration	Pt100: ± (0.06 % of measurement value in K + 0.1 % of span + 0.1 K (4-wire connection)) thermocouple: ± (0.05 % of measurement value in °C + 0.1 % of span + 1.5 K (1.7 K for types R and S)) this includes ± 1.3 K error of the cold junction compensation mV: ± (50 µV + 0.1 % of span) potentiometer: ± (0.05 % of full scale + 0.1 % of span, (excludes errors due to lead resistance))
	Influence of ambient temperature	deviation of CJC included: Pt100: ± (0.0015 % of measurement value in K + 0.006 % of span)/K ΔT_amb^) thermocouple: ± (0.02 K + 0.005 % of measurement value in °C + 0.006 % of span)/K ΔT_amb^) mV: ± (0.01 % of measurement value + 0.006 % of span)/K ΔT_amb^) potentiometer: ± 0.006 % of span/K ΔT_amb^) ^*) ΔT_amb = ambient temperature change referenced to 23 °C (296 K)
	Influence of supply voltage	< 0.01 % of span
	Influence of load	≤ 0.001 % of output value per 100 Ω
Reaction time		worst case value (sensor breakage and/or sensor short circuit detection enabled) mV: 1 s, thermocouples with CJC: 1.1 s, thermocouples with fixed reference temperature: 1.1 s, 3- or 4-wire RTD: 920 ms, 2-wire RTD: 800 ms, Potentiometer: 2.05 s
Galvanic isolation
Output/supply, programming input		functional insulation, rated insulation voltage 50 V AC There is no electrical isolation between the programming input and the supply. The programming cable provides galvanic isolation so that ground loops are avoided.
Indicators/settings
Display elements		LEDs
Configuration		via PACTware
Labeling		space for labeling at the front
Directive conformity
Electromagnetic compatibility
	Directive 2014/30/EU	EN 61326-1:2013 (industrial locations)
Conformity
Electromagnetic compatibility		NE 21:2012 EN 61326-3-2:2008
Degree of protection		IEC 60529:2001
Protection against electrical shock		UL 61010-1:2004
Ambient conditions
Ambient temperature		-20 ... 60 °C (-4 ... 140 °F)
Mechanical specifications
Degree of protection		IP20
Connection		screw terminals
Mass		approx. 100 g
Dimensions		12.5 x 114 x 124 mm (0.5 x 4.5 x 4.9 inch) , housing type A2
Mounting		on 35 mm DIN mounting rail acc. to EN 60715:2001
Data for application in connection with hazardous areas
EU-type examination certificate		BASEEFA 13 ATEX 0102 X
	Marking	II (1)G [Ex ia Ga] IIC , II (1)D [Ex ia Da] IIIC , I (M1) [Ex ia Ma] I
	Input	[Ex ia Ga] IIC, [Ex ia Da] IIIC, [Ex ia Ma] I
Inputs		terminals 1, 2, 3, 4
	Voltage U_o	9 V
	Current I_o	13.1 mA
	Power P_o	30 mW
Analog outputs, power supply, collective error
	Maximum safe voltage	250 V (Attention! This is not the rated voltage.)
Interface
	Maximum safe voltage	250 V (Attention! The rated voltage is lower.), RS 232
Certificate		BASEEFA 13 ATEX 0103 X
	Marking	II 3G Ex nA II T4 Gc [device in zone 2]
Galvanic isolation
	Input/Other circuits	safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V
Directive conformity
	Directive 2014/34/EU	EN 60079-0:2012+A11:2013 , EN 60079-11:2012 , EN 60079-15:2010
International approvals
UL approval
	Control drawing	116-0379 (cULus)
IECEx approval		IECEx BAS 13.0057X
	Approved for	[Ex ia Ga] IIC, [Ex ia Da] IIIC, [Ex ia Ma] I
General information
Supplementary information		Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable.
