KFD2-UFC-1.D 信號調理器安全柵現貨供應

KFD2-UFC-1.D 信號調理器安全柵現貨供應

???????倍加福信號調理器KFD2-UFC-1.D，單通道，24 V DC電源，弗熙堡從事自動化產品經銷多年，一切從客戶實際需求出發，備有大量現貨，竭誠為您服務，您值得選擇！021-51601058

好評系數：

立即詢價 KFD2-UFC-1.D 信號調理器安全柵現貨供應

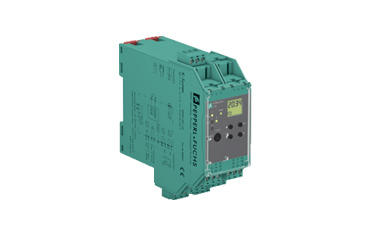

倍加福信號調理器KFD2-UFC-1.D現貨
KFD2-UFC-1.D
產品特點

       ? 1通道信號調理器
       ? 24 V DC電源（電源導軌）
       ? 2線或3線傳感器，NAMUR傳感器或干觸點的輸入
       ? 輸入頻率1 mHz ... 10 kHz
       ? 電流輸出0/4 mA ... 20 mA
       ? 繼電器觸點和晶體管輸出
       ? 啟動優先
       ? 線路故障檢測（LFD）
       ? 符合SIL 2標準 符合IEC 61508 / IEC 61511

產品介紹
24 V DC
General specifications
Signal type Digital Input
Functional safety related parameters
Safety Integrity Level (SIL) SIL 2
Supply
Connection terminals 23+, 24- or power feed module/Power Rail
Rated voltage 20 ... 30 V DC
Rated current approx. 100 mA
Power dissipation/power consumption ≤ 2 W / 2.2 W
Interface
Programming interface programming socket
Input
Connection side field side
Connection Input I: 2-wire sensor: terminals 1+, 3- three wire sensor: terminals 1+, 2- and 3
input II: terminals 13+, 14- start-up override;
Input I 2- or 3-wire sensor, sensor acc. to EN 60947-5-6 (NAMUR) or mechanical contact
  Open circuit voltage/short-circuit current 22 V / 40 mA
  Input resistance 4.7 kΩ
  Switching point/switching hysteresis logic 1: > 2.5 mA ; logic 0: < 1.9 mA
  Pulse duration > 50 µs
  Input frequency 0.001 ... 10000 Hz
  Line fault detection breakage I ≤ 0.15 mA; short-circuit I > 4 mA
Input II startup override: 1 ... 1000 s, adjustable in steps of 1 s
  Active/Passive I > 4 mA (for min. 100 ms) / I < 1.5 mA
  Open circuit voltage/short-circuit current 18 V / 5 mA
Output
Connection side control side
Connection output I: terminals 10, 11, 12
output II: terminals 16, 17, 18
outout III: terminasl 19+, 20-
output IV: terminals 8+, 7-
Output I, II signal, relay
  Contact loading 250 V AC / 2 A / cos φ ≥ 0.7 ; 40 V DC / 2 A
  Mechanical life 5 x 107 switching cycles
  Energized/De-energized delay approx. 20 ms / approx. 20 ms
Output III electronic output, passive
  Contact loading 40 V DC
  Signal level 1-signal: (L+) -2.5 V (50 mA, short-circuit/overload proof)
0-signal: blocked output (off-state current ≤ 10 µA)
Output IV analog
  Current range 0 ... 20 mA or 4 ... 20 mA
  Open loop voltage max. 24 V DC
  Load max. 650 Ω
  Fault signal downscale I ≤ 3.6 mA , upscale ≥ 21.5 mA (acc. NAMUR NE43)
Collective error message Power Rail
Transfer characteristics
Input I
  Measurement range 0.001 ... 10000 Hz
  Resolution 0.1 % of the measurement value , ≥ 0.001 Hz
  Accuracy 0.1 % of the measurement value , > 0.001 Hz
  Measuring time < 100 ms
  Influence of ambient temperature 0.003 %/K (30 ppm)
Output I, II
  Response delay ≤ 200 ms
Output IV
  Resolution < 10 µA
  Accuracy < 20 µA
  Influence of ambient temperature 0.005 %/K (50 ppm)
Galvanic isolation
Input I/other circuits reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff
Output I, II/other circuits reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff
Mutual output I, II, III reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff
Output III/power supply and collective error basic insulation according to IEC/EN 61010-1, rated insulation voltage 50 Veff
Output III/IV basic insulation according to IEC/EN 61010-1, rated insulation voltage 50 Veff
Output IV/power supply and collective error functional insulation acc. to IEC 62103, rated insulation voltage 50 Veff
Start-up override/power supply and collective error functional insulation acc. to IEC 62103, rated insulation voltage 50 Veff
Interface/power supply and collective error functional insulation acc. to IEC 62103, rated insulation voltage 50 Veff
Interface/output III basic insulation according to IEC/EN 61010-1, rated insulation voltage 50 Veff
Indicators/settings
Display elements LEDs , display
Control elements Control panel
Configuration via operating buttons
via PACTware
Labeling space for labeling at the front
Directive conformity
Electromagnetic compatibility
  Directive 2014/30/EU EN 61326-1:2013 (industrial locations)
Low voltage
  Directive 2014/35/EU EN 61010-1:2010
Conformity
Electromagnetic compatibility NE 21:2006
Degree of protection IEC 60529:2001
Ambient conditions
Ambient temperature -20 ... 60 °C (-4 ... 140 °F)
Mechanical specifications
Degree of protection IP20
Connection screw terminals
Mass 300 g
Dimensions 40 x 119 x 115 mm (1.6 x 4.7 x 4.5 inch) , housing type C3
Mounting on 35 mm DIN mounting rail acc. to EN 60715:2001
Data for application in connection with hazardous areas
Certificate PF 08 CERT 1216 X
  Marking Ex-Hexagon II 3G Ex nA nC IIC T4 Gc
Output I, II
  Contact loading 50 V AC/2 A/cos φ > 0.7; 40 V DC/1 A resistive load
Ambient conditions
  Ambient temperature -20 ... 50 °C (-4 ... 122 °F)
Directive conformity
  Directive 2014/34/EU EN 60079-0:2012+A11:2013 , EN 60079-15:2010
International approvals
UL approval E223772
General information
Supplementary information Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable.

弗熙堡自動化自成立以來“以市場為導向，客戶需求為依據，信譽和質量為生命”，的經營理念，謁誠為廣大客戶提供工業自動化產品；由于產品眾多，限于篇幅，無法一一展示，如有未展示自動化產品需要，盡請來電咨詢，電話： 021-51601058    手機：189-6426-6865
