NJ15+U1+E2 停產替代NBB15-U1-E2現貨供應

NJ15+U1+E2 停產替代NBB15-U1-E2現貨供應

???????電感式傳感器NJ15+U1+E2停產替代NBB15-U1-E2，工作距離 15 mm，齊平安裝，弗熙堡從事自動化產品經銷多年，一切從客戶實際需求出發，備有大量現貨，竭誠為您服務，您值得選擇！021-51601058

好評系數：

立即詢價 NJ15+U1+E2 停產替代NBB15-U1-E2現貨供應
倍加福電感式傳感器NJ15+U1+E2 停產替代NBB15-U1-E2現貨供應

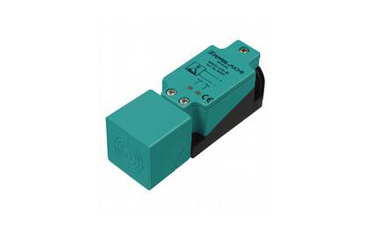

NJ15+U1+E2
產品特性

       ? 工作距離 15 mm
       ? 安裝 齊平


General specifications
Switching function Normally open (NO)
Output type PNP
Rated operating distance 15 mm
Installation flush
Output polarity DC
Assured operating distance 0 ... 12.15 mm
Actual operating distance 13.5 ... 16.5 mm typ. 15 mm
Reduction factor rAl 0.3
Reduction factor rCu 0.25
Reduction factor r304 0.75
Nominal ratings
Operating voltage 10 ... 60 V
Switching frequency 0 ... 150 Hz
Hysteresis 1 ... 10 typ. 5 %
Reverse polarity protection reverse polarity protected
Short-circuit protection pulsing
Voltage drop ≤ 2.8 V
Voltage drop at IL
  Voltage drop IL = 1 mA, switching element on 0.5 ... 2.3 V typ. 0.9 V
  Voltage drop IL = 10 mA, switching element on 0.8 ... 2.2 V typ. 1.4 V
  Voltage drop IL = 20 mA, switching element on 0.9 ... 2.3 V typ. 1.5 V
  Voltage drop IL = 50 mA, switching element on 0.9 ... 2.5 V typ. 1.6 V
  Voltage drop IL = 100 mA, switching element on 1 ... 2.6 V typ. 1.8 V
  Voltage drop IL = 200 mA, switching element on 1.2 ... 2.8 V typ. 2 V
Operating current 0 ... 200 mA
Off-state current 0 ... 0.5 mA typ. 0.01 mA
  Off-state current TU =40 °C, switching element off ≤ 100 µA
No-load supply current ≤ 10 mA
Operating voltage indicator LED, green
Switching state indicator LED, yellow
Functional safety related parameters
MTTFd 996 a
Mission Time (TM) 20 a
Diagnostic Coverage (DC) 0 %
Approvals and certificates
UL approval cULus Listed, General Purpose
CSA approval cCSAus Listed, General Purpose
CCC approval Certified by China Compulsory Certification (CCC)
Ambient conditions
Ambient temperature -25 ... 70 °C (-13 ... 158 °F)
Storage temperature -25 ... 85 °C (-13 ... 185 °F)
Mechanical specifications
Connection type screw terminals
Core cross-section up to 2.5 mm2
Housing material PBT
Sensing face PBT
Degree of protection IP68
