NJ30+U1+E2停產替代NBN30-U1-E2 現貨供應

NJ30+U1+E2停產替代NBN30-U1-E2 現貨供應

???????電感式傳感器NJ30+U1+E2，工作距離 30 mm，非齊平安裝，弗熙堡從事自動化產品經銷多年，一切從客戶實際需求出發，備有大量現貨，竭誠為您服務，您值得選擇！021-51601058

好評系數：

立即詢價 NJ30+U1+E2停產替代NBN30-U1-E2 現貨供應

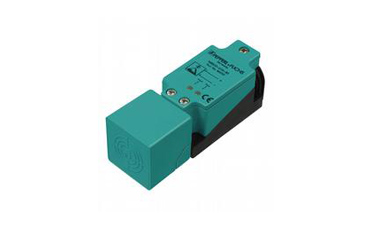

倍加福電感式傳感器NJ30+U1+E2停產替代NBN30-U1-E2現貨供應
NJ30+U1+E2
產品特性

       ? 工作距離 30 mm
       ? 非齊平安裝


General specifications
Switching function Normally open (NO)
Output type PNP
Rated operating distance 30 mm
Installation non-flush
Output polarity DC
Assured operating distance 0 ... 24.3 mm
Actual operating distance 27 ... 33 mm typ. 30 mm
Reduction factor rAl 0.45
Reduction factor rCu 0.4
Reduction factor r304 0.8
Nominal ratings
Operating voltage 10 ... 60 V
Switching frequency 0 ... 100 Hz
Hysteresis 1 ... 10 typ. 5 %
Reverse polarity protection reverse polarity protected
Short-circuit protection pulsing
Voltage drop ≤ 2.8 V
Voltage drop at IL
  Voltage drop IL = 1 mA, switching element on 0.5 ... 2.3 V typ. 0.9 V
  Voltage drop IL = 10 mA, switching element on 0.8 ... 2.2 V typ. 1.4 V
  Voltage drop IL = 20 mA, switching element on 0.9 ... 2.3 V typ. 1.5 V
  Voltage drop IL = 50 mA, switching element on 0.9 ... 2.5 V typ. 1.6 V
  Voltage drop IL = 100 mA, switching element on 1 ... 2.6 V typ. 1.8 V
  Voltage drop IL = 200 mA, switching element on 1.2 ... 2.8 V typ. 2 V
Operating current 0 ... 200 mA
Off-state current 0 ... 0.5 mA typ. 0.01 mA
  Off-state current TU =40 °C, switching element off ≤ 100 µA
No-load supply current ≤ 10 mA
Operating voltage indicator LED, green
Switching state indicator LED, yellow
Approvals and certificates
UL approval cULus Listed, General Purpose
CSA approval cCSAus Listed, General Purpose
CCC approval Certified by China Compulsory Certification (CCC)
Ambient conditions
Ambient temperature -25 ... 70 °C (-13 ... 158 °F)
Storage temperature -25 ... 85 °C (-13 ... 185 °F)
Mechanical specifications
Connection type screw terminals
Core cross-section up to 2.5 mm2
Housing material PBT
Sensing face PBT
Degree of protection IP68
