LFL2-BK-U-PUR5-EMS 浮動開關現貨供應

LFL2-BK-U-PUR5-EMS 浮動開關現貨供應

???????浮動開關LFL2-BK-U-PUR5-EMS，球設計：高浮力，弗熙堡從事自動化產品經銷多年，一切從客戶實際需求出發，備有大量現貨，竭誠為您服務，您值得選擇！021-51601058

好評系數：

立即詢價 LFL2-BK-U-PUR5-EMS 浮動開關現貨供應

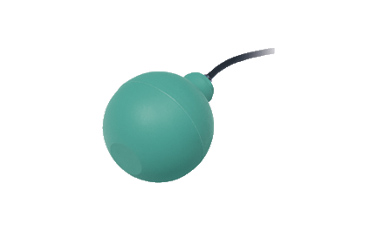

倍加福浮動開關LFL2-BK-U-PUR5-EMS現貨供應
LFL2-BK-U-PUR5-EMS
產品特性

       ? 開關元件：微型開關，無汞
       ? 液體上限值檢測
       ? 球設計：高浮力

Electrical specifications
Contact loading 250 V AC/3 A; 150 V DC/0.25 A resistive load; 60 V DC/1 A resistive load
Rated insulation voltage 300 V
Pulse withstand voltage 4 kV
Electrical life ≥ 5 x 104 switching cycles
Directive conformity
Low voltage
  Directive 2014/35/EU EN 60947-5-1:2004 + Cor.:2005 + A1:2009
Conformity
Degree of protection IEC 60529:2001
Application
Description microswitch with switching ball, change-over contact
Function and system design
Equipment architecture This device may be used with any sequential circuit, as long as the circuit can support the electrical circuit values of the switching elements.
Operating conditions
Installation conditions
  Installation instructions range of application and minimum length between mounting and float:
≥ 100 mm (4 inch), preferred for fuels, heating oils, oily fluids
mounting:
The float switch is mounted by means of a counter weight or rods (e. g. float switch combination) from the top.
The pivot of the cable should always be horizontal.
Process conditions
  Process pressure (static pressure) ≤ 2 bar (29 psi) at 20 °C (68 °F)
  Density ≥ 0.6 g/cm3
Ambient conditions
Ambient temperature 5 ... 70 °C (41 ... 158 °F)
Storage temperature -25 ... 70 °C (-13 ... 158 °F)
Altitude ≤ 2000 m above MSL
Mechanical specifications
Degree of protection IP68
Cable
  Length 5 m
Mechanical construction
Material float: PP (Polypropylene)
cable: PUR, highly flexible (3 x 0.50 mm2)
Switching point switch angle, measured against the horizontal:
- upper switch point +25° ±10°
- lower switch point -14° ±10°
General information
Supplementary information Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable.
