UC2000-30GM-IUR2-V15 超聲波傳感器現貨供應

UC2000-30GM-IUR2-V15 超聲波傳感器現貨供應

???????超聲波傳感器UC2000-30GM-IUR2-V15，聲功率和靈敏度可調，溫度補償，弗熙堡從事自動化產品經銷多年，一切從客戶實際需求出發，備有大量現貨，竭誠為您服務，您值得選擇！021-51601058

好評系數：

立即詢價 UC2000-30GM-IUR2-V15 超聲波傳感器現貨供應

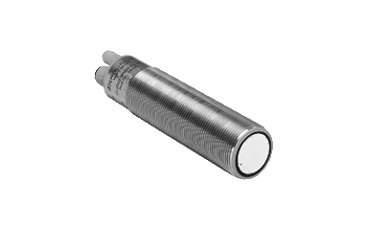

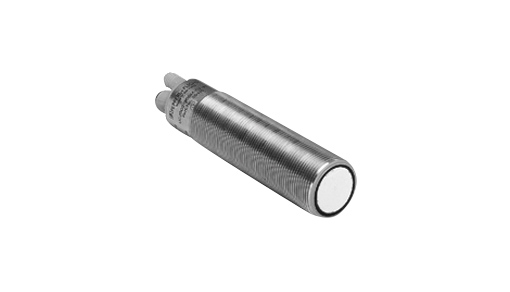

倍加福超聲波傳感器UC2000-30GM-IUR2-V15現貨供應
UC2000-30GM-IUR2-V15
產品特性
       ? 參數化界面，用于通過服務程序ULTRA 3000進行傳感器設置的特定應用調整
       ? 模擬電流和電壓輸出
       ? 同步選項
       ? 聲功率和靈敏度可調
       ? 溫度補償

產品介紹
Single head system
General specifications
Sensing range 80 ... 2000 mm
Adjustment range 120 ... 2000 mm
Dead band 0 ... 80 mm
Standard target plate 100 mm x 100 mm
Transducer frequency approx. 180 kHz
Response delay 65 ms minimum
195 ms factory setting
Indicators/operating means
LED green solid: Power-on
flashing: Standby mode or program function object detected
LED yellow 1 solid: object in evaluation range
flashing: program function
LED yellow 2 solid: object in detection range
flashing: program function
LED red solid: temperature/program plug not connected
flashing: fault or program function object not detected
Temperature/TEACH-IN connector Temperature compensation , Evaluation range programming , output function setting
Electrical specifications
Operating voltage 10 ... 30 V DC , ripple 10 %SS
Power consumption ≤ 900 mW
Time delay before availability ≤ 500 ms
Interface
Interface type RS 232, 9600 Bit/s , no parity, 8 data bits, 1 stop bit
Input/Output
Synchronization bi-directional
0 level -UB...+1 V
1 level: +4 V...+UB
input impedance: > 12 KOhm
synchronization pulse: ≥ 100 µs, synchronization interpulse period: ≥ 2 ms
Synchronization frequency
  Common mode operation max. 30 Hz
  Multiplex operation ≤ 30 Hz / n , n = number of sensors , n ≤ 5
Output
Output type 1 current output 4 ... 20 mA
1 voltage output 0 ... 10 V
Resolution evaluation range [mm]/4000, but ≥ 0.35 mm
Deviation of the characteristic curve ≤ 0.2 % of full-scale value
Repeat accuracy ≤ 0.1 % of full-scale value
Load impedance current output: ≤ 500 Ohm
voltage output: ≥ 1000 Ohm
Temperature influence ≤ 2 % from full-scale value (with temperature compensation)
≤ 0.2 %/K (without temperature compensation)
Compliance with standards and directives
Standard conformity
  Standards EN 60947-5-2:2007+A1:2012
IEC 60947-5-2:2007 + A1:2012
EN 60947-5-7:2003
IEC 60947-5-7:2003
Approvals and certificates
EAC conformity TR CU 020/2011
TR CU 037/2016
UL approval cULus Listed, General Purpose
CSA approval cCSAus Listed, General Purpose
CCC approval CCC approval / marking not required for products rated ≤36 V
Ambient conditions
Ambient temperature -25 ... 70 °C (-13 ... 158 °F)
Storage temperature -40 ... 85 °C (-40 ... 185 °F)
Mechanical specifications
Connection type Connector plug M12 x 1 , 5-pin
Degree of protection IP65
Material
  Housing stainless steel (1.4305 / AISI 303)
PBT plastic parts
  Transducer epoxy resin/hollow glass sphere mixture; polyurethane foam
Mass 170 g
Factory settings
Output evaluation limit A1: 200 mm
evaluation limit A2: 2000 mm
rising ramp
