UB500-F54-U-V15 超聲波傳感器現貨供應

UB500-F54-U-V15 超聲波傳感器現貨供應

???????超聲波傳感器UB500-F54-U-V15，模擬量輸出0 ... 10 V，弗熙堡從事自動化產品經銷多年，一切從客戶實際需求出發，備有大量現貨，竭誠為您服務，您值得選擇！021-51601058

好評系數：

立即詢價 UB500-F54-U-V15 超聲波傳感器現貨供應

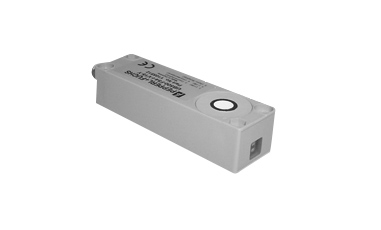

倍加福超聲波傳感器UB500-F54-U-V15現貨供應
UB500-F54-U-V15
產品特性
       ? 模擬量輸出0 ... 10 V
       ? 測量窗口可調
       ? 程序輸入
       ? 同步選項
       ? 停用選項
       ? 溫度補償

產品介紹
Single head system
General specifications
Sensing range 30 ... 500 mm
Adjustment range 50 ... 500 mm
Dead band 0 ... 30 mm
Standard target plate 100 mm x 100 mm
Transducer frequency approx. 380 kHz
Response delay ≤ 50 ms
Indicators/operating means
LED green solid green: monitoring system
green flashing: program function
LED yellow solid yellow: object in the evaluation range
yellow, flashing: program function, object detected
LED red flashing:
normal mode: error
Program function: no object detected
permanently:
Program mode, object uncertain
Electrical specifications
Operating voltage 15 ... 30 V DC , ripple 10 %SS
No-load supply current ≤ 55 mA
Input/Output
Synchronization 1 synchronous input
0 level: UB...+1 V
1 level: +4 V...+UB
input impedance: > 12 KOhm
synchronization pulse: 0.1 ... 8 ms
Synchronization frequency
  Common mode operation max. 100 Hz
  Multiplex operation ≤ 100 / n Hz, n = number of sensors
Input
Input type 1 program input
lower evaluation limit A1: -UB ... +1 V, upper evaluation limit A2: +4 V ... +UB
input impedance: > 4.7 kΩ, pulse duration: ≥ 1 s
Output
Output type 1 analog output 0 ... 10 V
Default setting evaluation limit A1: 50 mm evaluation limit A2: 500 mm
Resolution 0.11 mm
Deviation of the characteristic curve ± 1 % of full-scale value
Repeat accuracy ± 0.1 % of full-scale value
Load impedance ≥ 1 kOhm
Temperature influence ± 1.5 % of full-scale value
Compliance with standards and directives
Standard conformity
  Standards EN 60947-5-2:2007+A1:2012
IEC 60947-5-2:2007 + A1:2012
EN 60947-5-7:2003
IEC 60947-5-7:2003
Approvals and certificates
EAC conformity TR CU 020/2011
TR CU 037/2016
UL approval cULus Listed, General Purpose
CSA approval cCSAus Listed, General Purpose
CCC approval CCC approval / marking not required for products rated ≤36 V
Ambient conditions
Ambient temperature -25 ... 70 °C (-13 ... 158 °F)
Storage temperature -40 ... 85 °C (-40 ... 185 °F)
Mechanical specifications
Connection type Connector plug M12 x 1 , 5-pin
Degree of protection IP65
Material
  Housing ABS
  Transducer epoxy resin/hollow glass sphere mixture; polyurethane foam
Mass 100 g

弗熙堡自動化自成立以來“以市場為導向，客戶需求為依據，信譽和質量為生命”，的經營理念，謁誠為廣大客戶提供工業自動化產品；由于產品眾多，限于篇幅，無法一一展示，如有未展示自動化產品需要，盡請來電咨詢，電話： 021-51601058    手機：189-6426-6865
產品可應用于
弗熙堡自動化您值得選擇！
弗熙堡自動化全體員工誠摯期待您的蒞臨采購咨詢電話：021-51601058    189-6426-6865
